Description

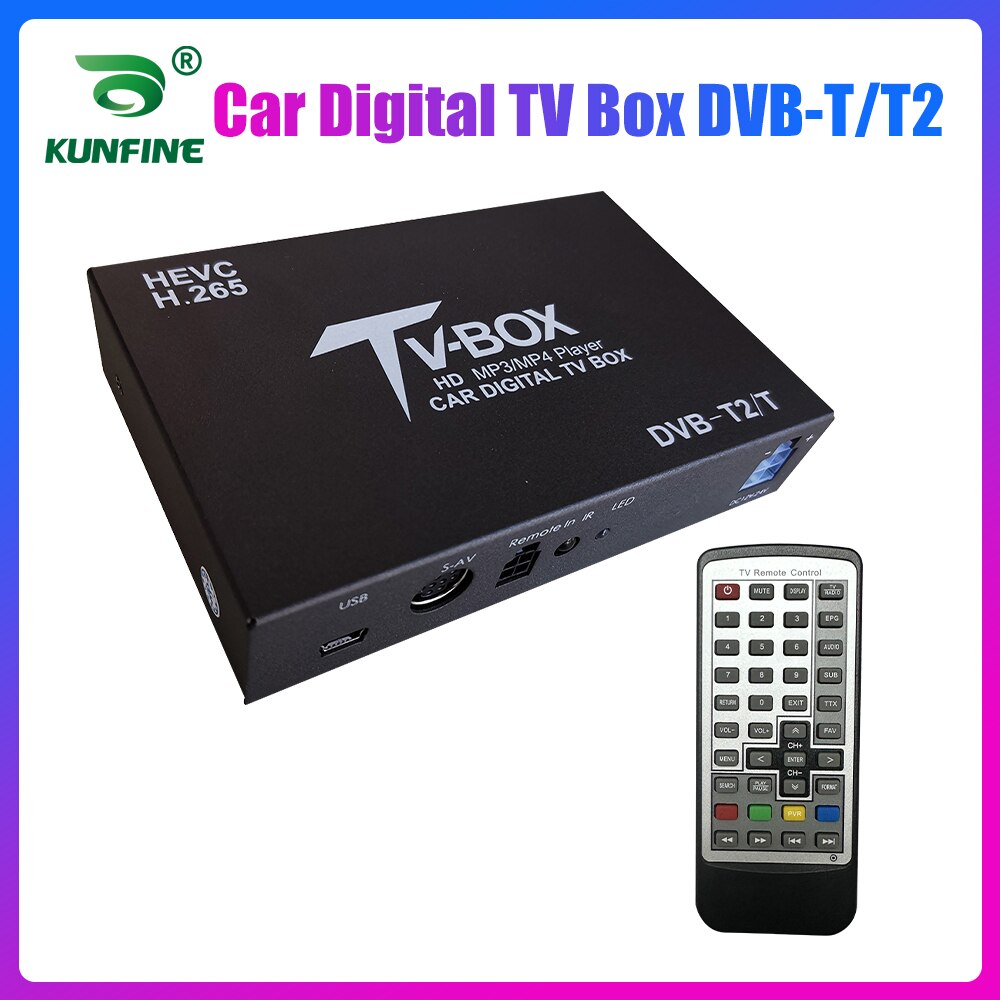

Car TV Signal Box DVB-T Auto Mobile Digital TV Box DVB-T2 HEVC H.265 Receiver TV Tuner Box Germany Europe Australia Philippines
Technical Specification

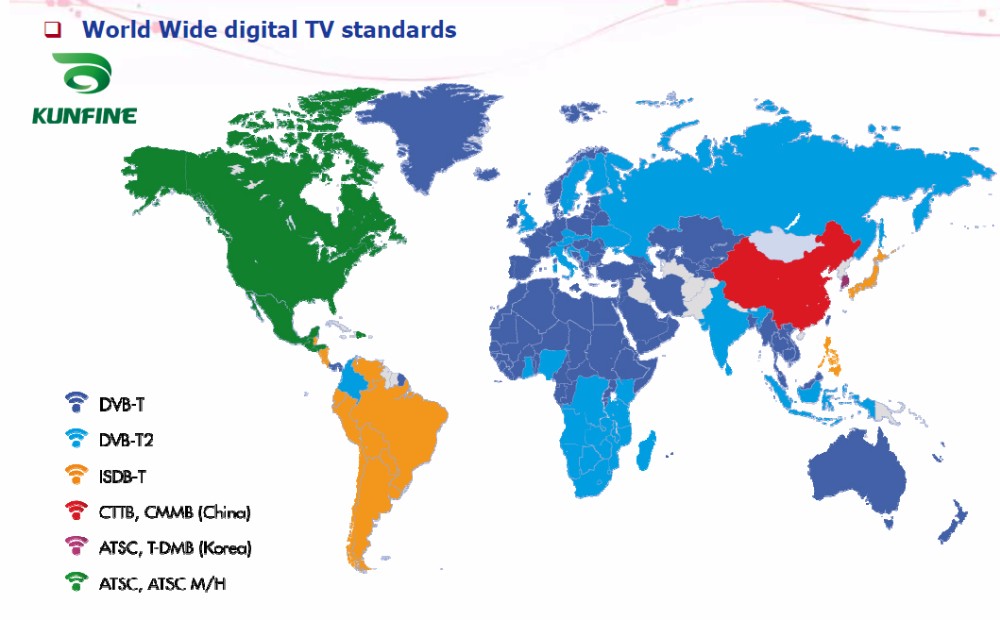

Tuner Module : DVB-T EN300 744/DVB-T2 EN302 755 V1.3.1 Standard
RF Input: UHF: 470MHz～862MHz VHF:174MHz~230MHz
Input Impedance:75Ω
Signal Level: -80dBm～-10dBm
Connector Type: SMA type terminal
Channel Band Width: 6M/7M/8M
FFT size:1K,2K,4K,8K (normal), 8K (extended), 16K(normal),
16K (extended), 32K (normal), and 32K (extended)
Modulation: QPSK, 16QAM, 64QAM,128QAM,256QAM
Guard Interval: 1/128，1/32, 1/16, 19/256,1/8,19/128, 1/4
Pilot pattern: PP1 TO PP7
Servic type :Support both single PLP (Mode A)and Multiple PLP (Mode B)
Support Single Frequency Network(SFN) in accordance with ETSI TS 101191[6]
Transport Stream: MPEG-4AVC/H.264 HP@L4,MPEG-2 MP@HL/MLHEVC (H.265)
Video Aspect Ratio: 4:3/16:9
Video System: PAL/NTSC
Video Output: 1±0.3Vpp
Video Resolution HD Resolution:720*576@25fps/720*480@30fps/HD 1920×1080P/1920×1080i
Audio Decoder: MPEG-2/HE_AAC(DD/DD +optional)
Audio Channel: R/L/ST
Audio Output: 1Vpp

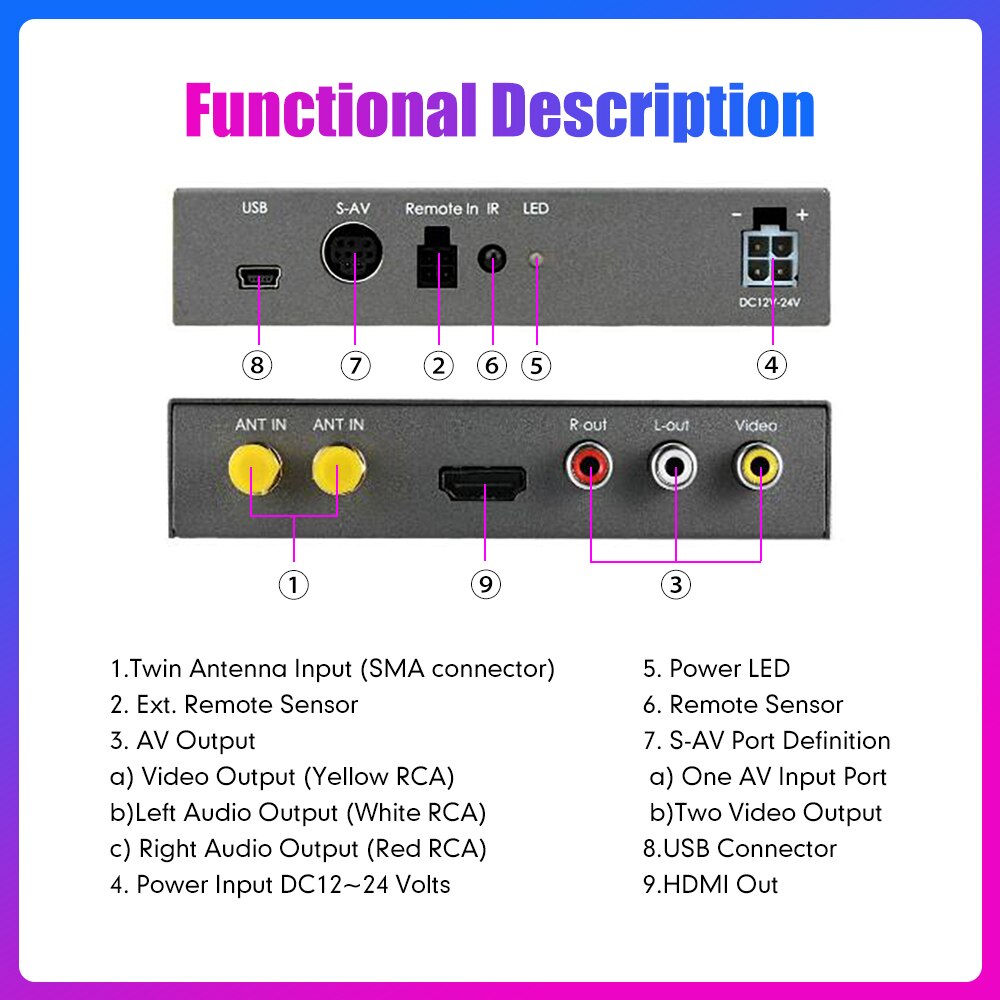

Power Cable And Jack: 4Pins:
1. DC+12~24V Input
2. ACC
3. GND
4.NC
IR Extension Jack: For IR Extension Box
A/V Output Jack: Video RCA Jack×1,Audiop RCA Jack(R/L) ×2
Upgrade and Multimedia Port: USB
S-AV connector :
1. Input Jack :Video RCA Jack×1, Audio RCA Jack (R/L)×1
2. Output Jack: Video RCA Jack×2
ANT1 Input Jack: Female SMA Type
Operating Temperature: -10℃～+70℃
Storage Temperature: -40℃～+70℃
Power Supply: DC+10V～24V±10%
Power Consumption: Running: 4.5W Max
Standby: <0.25W
- Voltage:
- 12V

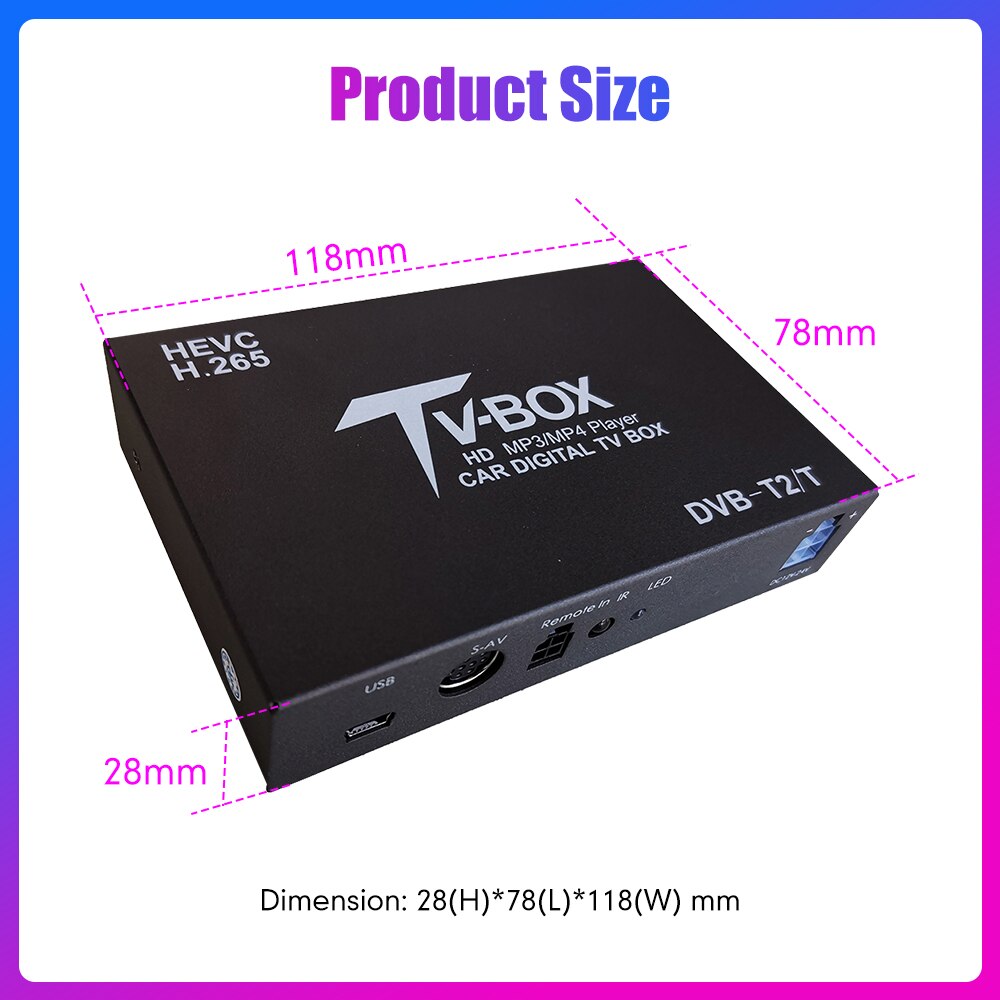

- Item Size:
- 21*17*11cm
- Frequency Range:
- 174-806MHz
- Model Name:
- KF-V8908
- Color Name:
- Black
- Brand Name:
- KUNFINE
- Origin:
- Mainland China
- Certification:
- FCC
- Connectors:
- USB
- weight:
- 0.9kg
- car model:
- DVB T2/T
