Car TV Signal Box DVB-T Auto Mobile Digital TV Box DVB-T2 HEVC H.265 Receiver TV Tuner Box Germany Europe Australia Philippines

reviews 0 sold

$45.60$57.00 piece

Quantity: 500items available

Shipping:

Description
Reviews (0)

Car TV Signal Box DVB-T Auto Mobile Digital TV Box DVB-T2 HEVC H.265 Receiver TV Tuner Box Germany Europe Australia Philippines

Car Styling Wrap Glossy Black 5D Carbon Fiber Vinyl Car Vinyl film Body Sticker Car Wrap With Air Free Bubble 1.52*20M /RollCNY 703.80/lot

Car Digital Music Changer Adapter USB SD Aux MP3 Interface Car Stereo For Honda 2.4F Bluetooth Phone Mould&Controller OptionCNY 399.60/piece

Auto Car Radio FM Antenna Signal Booster For Nissan car FM signal amplifier Amp Amplifier 12V Signal Antenna EnhanceCNY 23.27/piece

Wireless Car Styling 4.3 inch TFT LCD Screen Car Monitor Display for Rear view Reverse Backup Camera Car TV DisplayCNY 30.07-104.29/piece

Car TV Signal Box DVB-T Auto Mobile Digital TV Box DVB-T2 HEVC H.265 Receiver TV Tuner Box Germany Europe Australia Philippines

Technical Specification

Tuner Module : DVB-T EN300 744/DVB-T2 EN302 755 V1.3.1 Standard

RF Input: UHF: 470MHz～862MHz VHF:174MHz~230MHz

Input Impedance:75Ω

Signal Level: -80dBm～-10dBm

Connector Type: SMA type terminal

Channel Band Width: 6M/7M/8M

FFT size:1K,2K,4K,8K (normal), 8K (extended), 16K(normal),

16K (extended), 32K (normal), and 32K (extended)

Modulation: QPSK, 16QAM, 64QAM,128QAM,256QAM

Guard Interval: 1/128，1/32, 1/16, 19/256,1/8,19/128, 1/4

Pilot pattern: PP1 TO PP7

Servic type :Support both single PLP (Mode A)and Multiple PLP (Mode B)

Support Single Frequency Network(SFN) in accordance with ETSI TS 101191[6]

Transport Stream: MPEG-4AVC/H.264 HP@L4,MPEG-2 MP@HL/MLHEVC (H.265)

Video Aspect Ratio: 4:3/16:9

Video System: PAL/NTSC

Video Output: 1±0.3Vpp

Video Resolution HD Resolution:720*576@25fps/720*480@30fps/HD 1920×1080P/1920×1080i

Audio Decoder: MPEG-2/HE_AAC(DD/DD +optional)

Audio Channel: R/L/ST

Audio Output: 1Vpp

Power Cable And Jack: 4Pins:

1. DC+12~24V Input

2. ACC

3. GND

4.NC

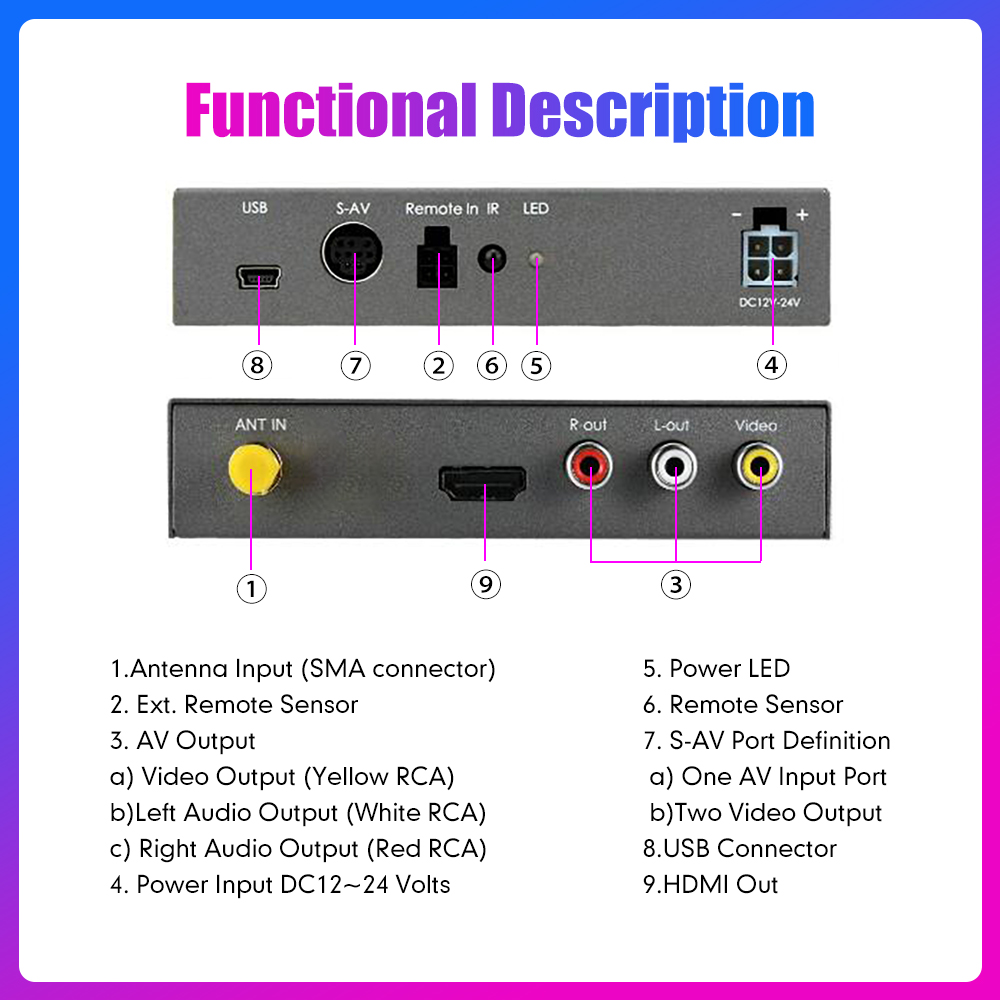

IR Extension Jack: For IR Extension Box

A/V Output Jack: Video RCA Jack×1,Audiop RCA Jack(R/L) ×2

Upgrade and Multimedia Port: USB

S-AV connector :

1. Input Jack :Video RCA Jack×1, Audio RCA Jack (R/L)×1

2. Output Jack: Video RCA Jack×2

ANT1 Input Jack: Female SMA Type

Operating Temperature: -10℃～+70℃

Storage Temperature: -40℃～+70℃

Power Supply: DC+10V～24V±10%

Power Consumption: Running: 4.5W Max

Standby: <0.25W

Car TV Signal Box DVB-T Auto Mobile Digital TV Box DVB-T2 HEVC H.265 Receiver TV Tuner Box Germany Europe Australia Philippines
